Meter’s WAN Speed Tests make it easy to measure the performance of your internet connections directly from the Meter dashboard. These tests help you understand how your WAN links are performing, validate ISP speeds, and troubleshoot connectivity issues without relying on third-party tools. You can access WAN Speed Tests in the dashboard under: Insights → Speed tests

​
Speed Tests Overview

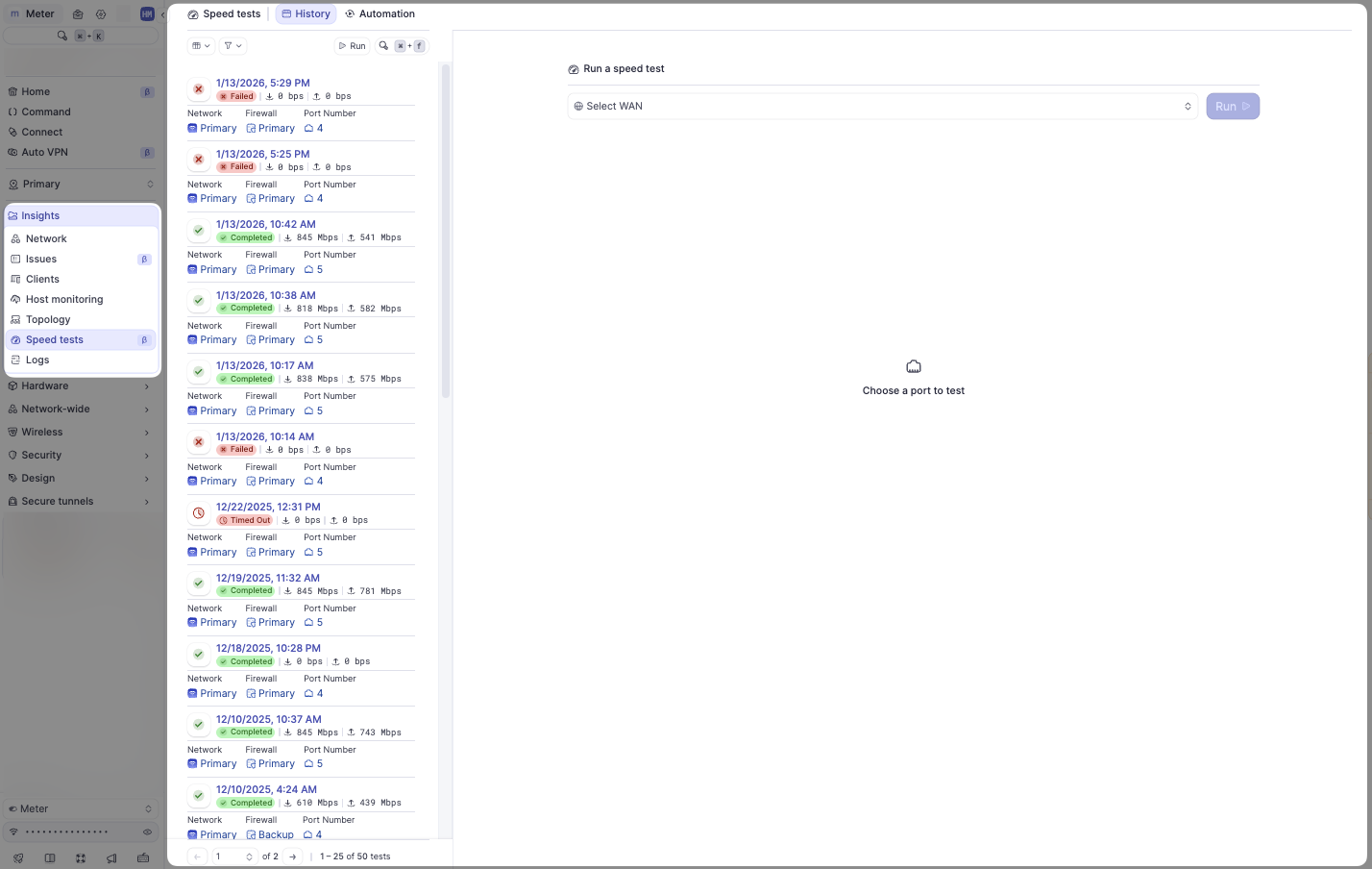

Speedtest Overview The speed tests page is the central place to run, review, and manage WAN speed tests. The page is divided into two main areas:
  • History (left panel) - shows a list of all speed tests that have been run on the network. Each entry includes:
    • Test status (Completed, Failed, or Timed Out)
    • Date and time the test ran
    • Measured download and upload speeds
    • The network, firewall, and WAN port used
This view makes it easy to review past tests and compare results over time.
  • Main panel - used to start new speed tests and view detailed results for a selected test.

​
Running a WAN Speed Test

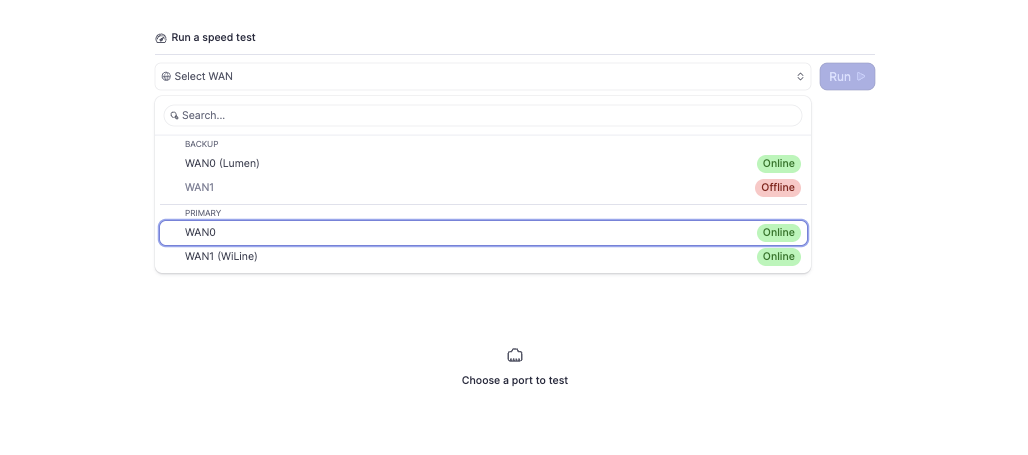

Speedtest Dropdown You can manually run a WAN speed test at any time. To start a test:
  1. From the main panel, click the dropdown
  2. Select the Firewall you want to test from
  3. Select the WAN port on that firewall
    • Each WAN displays its current status (Online or Offline)
  4. Click Run
This allows you to test individual WAN connections, such as a primary or backup ISP, and confirm how each link is performing at that moment.

​
Understanding Speed Test Results

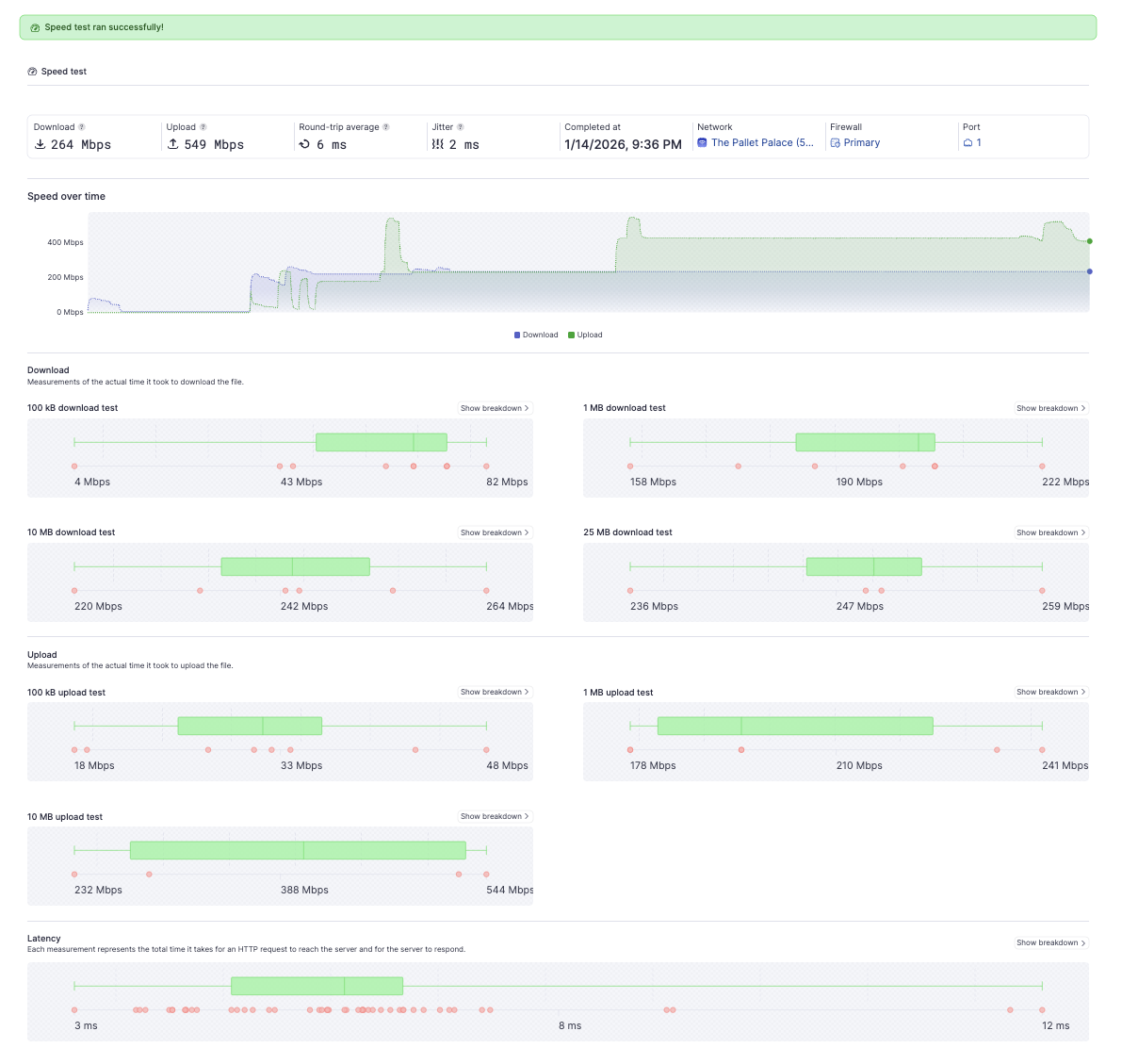

Speedtest Results After a test completes, the dashboard displays a detailed results view. Summary metrics - At the top of the results, you’ll see:
  • Download speed – How quickly data is received from the internet
  • Upload speed – How quickly data is sent to the internet
  • Round-trip average (latency) – The average time it takes for a request to reach the server and return
  • Jitter – Variation in latency between requests, which can affect real-time applications
Speed over time - A graph shows download and upload speeds throughout the duration of the test. This helps identify:
  • Consistent performance
  • Temporary drops in throughput
  • Overall stability of the WAN link
Detailed breakdowns - Speed tests are run using multiple file sizes to better reflect real-world traffic patterns:
  • Download tests: 100 KB, 1 MB, 10 MB, 25 MB
  • Upload tests: 100 KB, 1 MB, 10 MB
Each section shows the range and distribution of measured speeds. Latency results - measurements show how responsive the connection is, including typical response times and any outliers observed during the test.

​
Automating WAN Speed Tests

You can configure WAN speed tests to run automatically on a schedule. Speedtest Automation Rule To create an automation rule:
  1. Go to Speed tests → Automation
  2. Click Add rule
  3. Enable the rule
  4. Choose a rule target:
    • Current Network or Controller Port (to target a specific WAN port)
  5. Select how often the test should run:
    • Daily or Weekly
  6. Choose a time window for the test
  7. Click Add
Scheduled speed tests are useful for tracking WAN performance consistently and identifying trends over time. Running tests during off-hours is recommended to minimize impact on active traffic.

​
Filtering Speed Test History

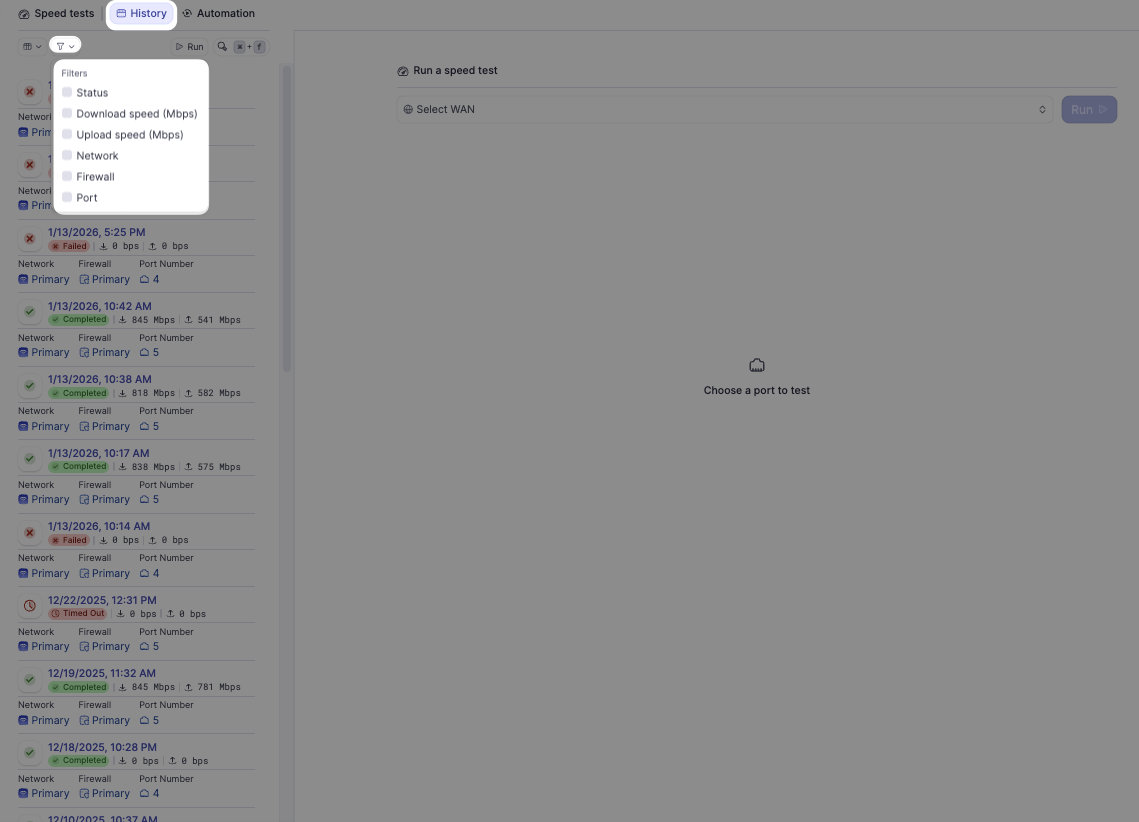

Speedtest Filters The History view includes filters to help you quickly find relevant tests. You can filter results by:
  • Status
  • Download speed
  • Upload speed
  • Network
  • Firewall
  • Port
This is helpful when reviewing specific events, comparing WAN links, or sharing results with your ISP.

​
When to Use WAN Speed Tests

WAN Speed Tests are especially useful when you want to:
  • Verify that an ISP is delivering expected speeds
  • Compare performance between primary and backup WAN links
  • Troubleshoot slow or inconsistent internet connectivity
  • Review historical WAN performance during an issue investigation

​
Tips for Running Accurate Speed Tests

Tip: Run tests during off-hours
For the most accurate results, run WAN speed tests during periods of low network usage (for example, overnight or early morning). This helps reduce the impact of active user traffic on the results.
Tip: Test each WAN separately
If your network has multiple WAN connections (such as primary and backup), run tests on each WAN individually. This makes it easier to compare performance and identify differences between ISPs.
Tip: Use automation for consistency
Scheduled speed tests provide a consistent baseline over time. This is especially helpful for identifying trends or collecting data to share with your ISP.
Tip: Compare results, not just one test
A single speed test shows performance at a point in time. Reviewing multiple results in the History view gives a clearer picture of overall WAN health.
If you have any questions about the WAN Speed Tests or need further assistance, feel free to contact Meter Support at [email protected] or submit a ticket on the Meter Dashboard
