Who can modify this feature?

  • Partner
  • Company Admin
  • Network Admin
  • Meter Support

​
What is a dynamic VLAN?

VLANs are used to segment types of network traffic—such as Private, Guest, and AV devices—from one another. Normally, one Wi-Fi SSID is tied to a single VLAN. With a Dynamic VLAN, an access point can assign a VLAN to each client as they connect, using only one Wi-Fi SSID.

​
Requirements

Dynamic VLANs require 802.1X authentication (RADIUS).
The RADIUS server must be configured to return a VLAN ID for each client when they authenticate. Read more about pointing your Wi-Fi SSID to a RADIUS server here:
Network-wide → RADIUS Profiles (Adding 802.1X and WPA2-Enterprise) The RADIUS server should set the following attributes for VLAN assignment:
Tunnel-Medium-Type = 6
Tunnel-Type = 13
Tunnel-Private-Group-Id = <VLAN_ID>
VLANs that can be assigned by the RADIUS server also need to exist on the Meter Security Appliance.
Learn more: Network-wide → VLANs

​
Configuring an SSID with a Dynamic VLAN

  1. Log in to the Dashboard.
  2. Navigate to Wireless → SSIDs → Add SSID.
  3. Under Security → Authentication, select any RADIUS-based security option.
  4. Toggle Dynamic VLAN to the desired mode.

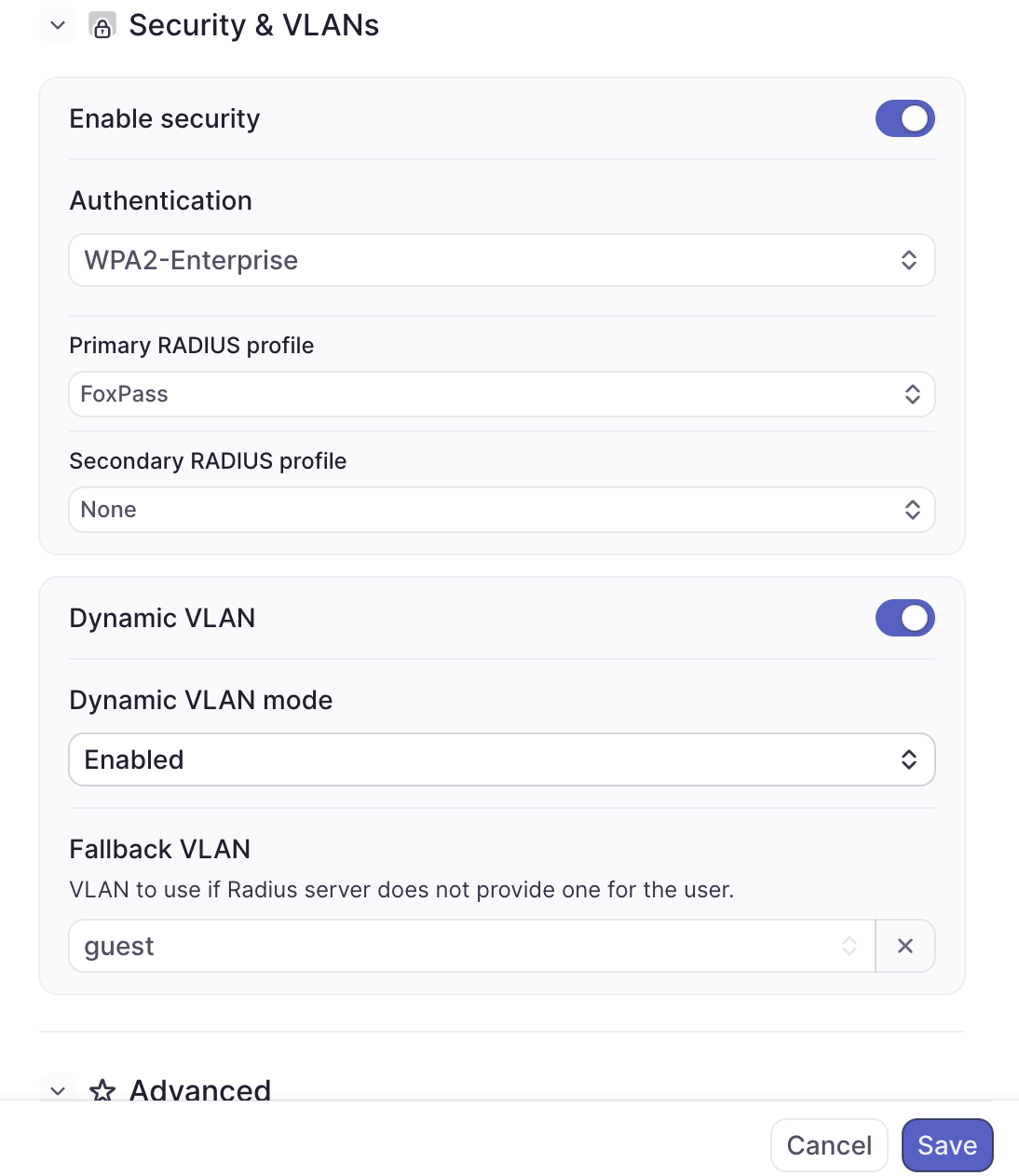

Dynamic VLAN configuration Dynamic VLAN: Toggle this setting based on your use case.
Off: All devices using this SSID will be assigned to the selected VLAN.
On – Enabled: If no VLAN is specified by the RADIUS server, the system will use the fallback VLAN.
On – Required: If no VLAN is specified by the RADIUS server, the system will reject the client.
⚠️ Note:
Adding or removing an SSID that uses Dynamic VLAN authentication — even if the SSID is disabled — will trigger a reboot of all APs.
Schedule changes carefully to avoid unexpected disruptions.

​
Current limitations

The maximum VLAN count is 128 per access point. If you have any questions about Dynamic VLANs or need assistance, contact Meter Support at
support@meter.com or submit a ticket at dashboard.meter.com/support.
