Who can use this Feature?

• Any Dashboard user

Partners and Company Admins can add, remove, or modify rack elevation diagrams.

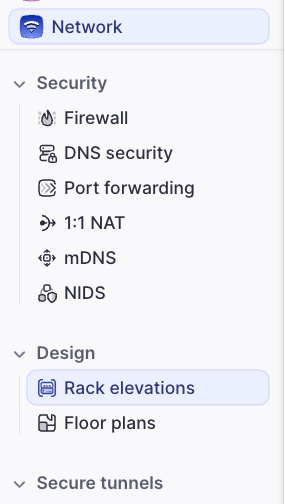

Rack elevation diagrams can be found in Dashboard under Design > Rack elevations.

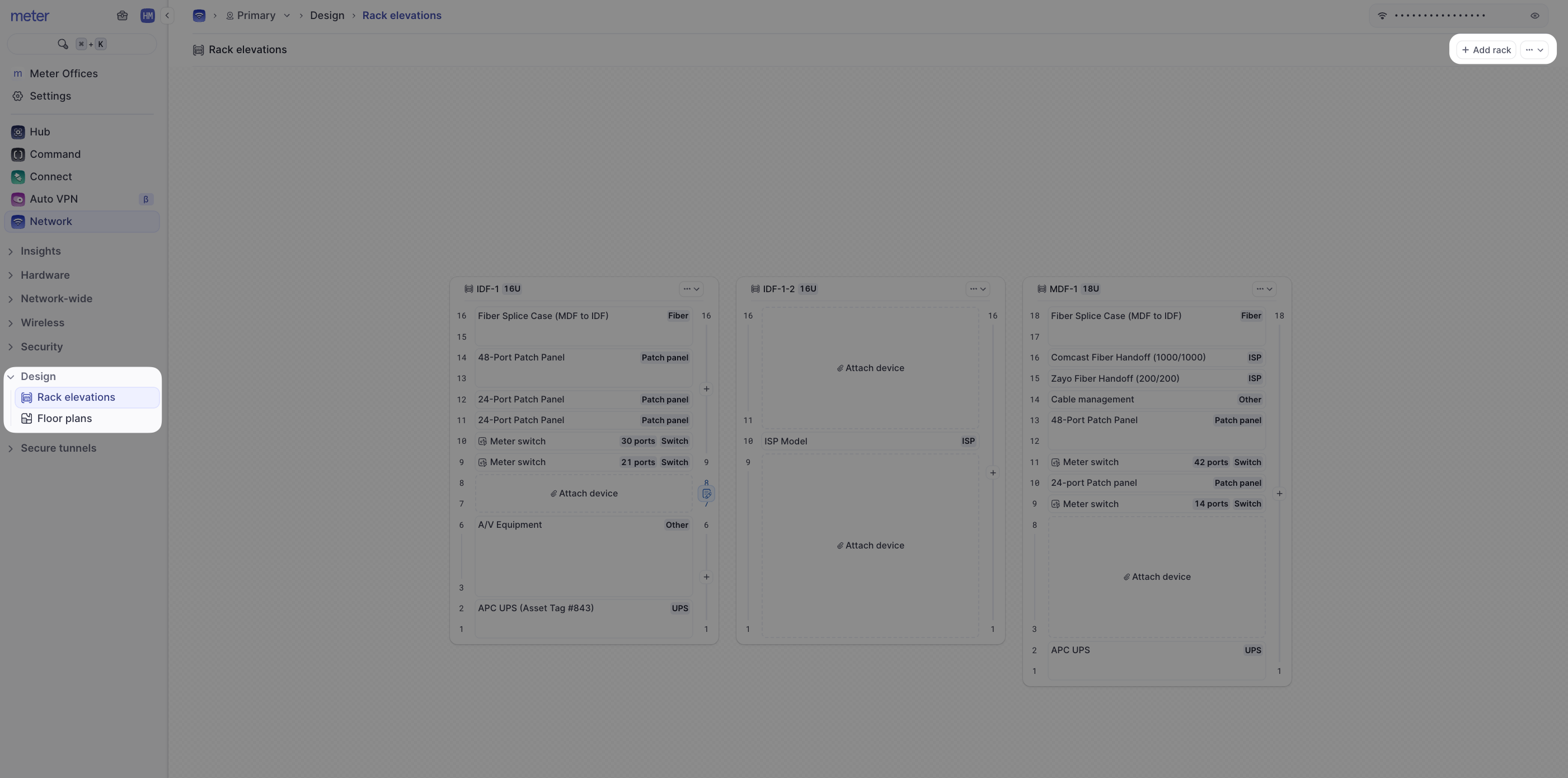

To add a new rack diagram, click on the Add rack button.

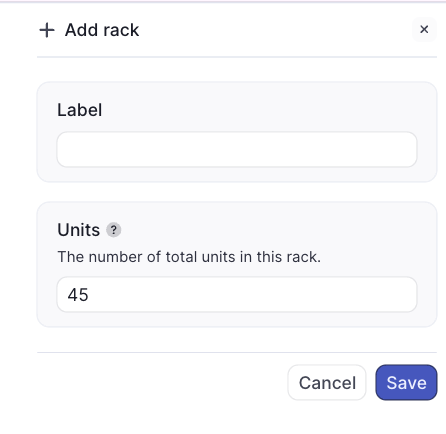

Fill out the Label name and number of rack units needed and then, click save.

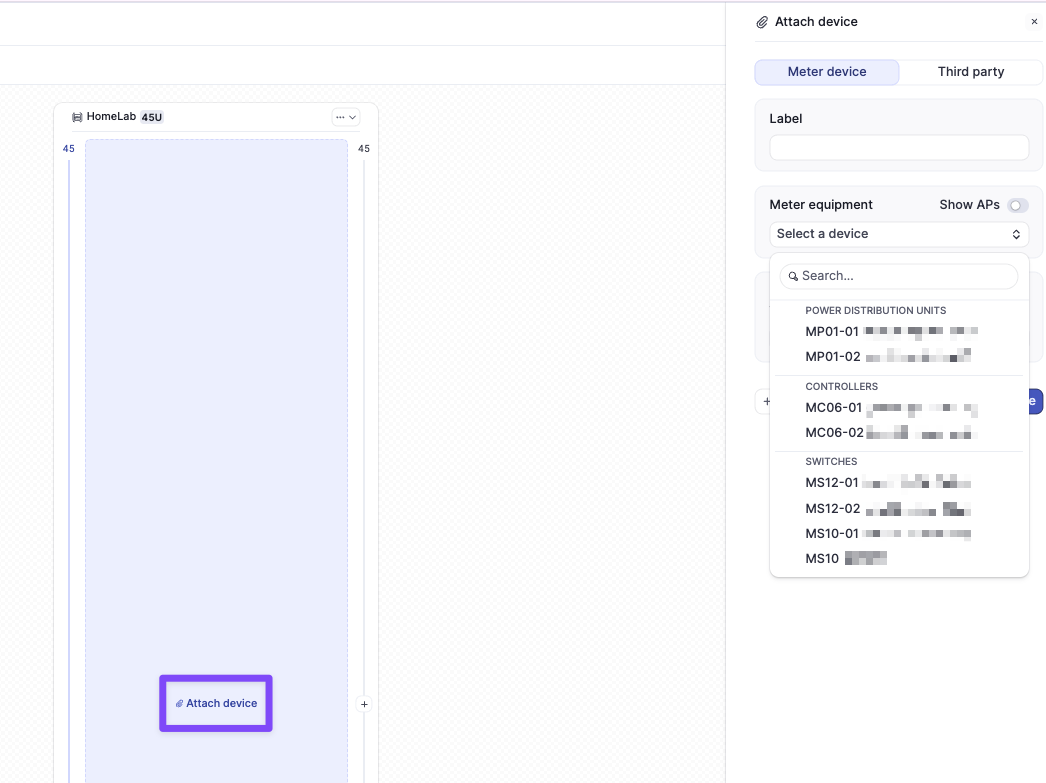

Click Attach device. Under Meter Device, click on the desired device in your dashboard.

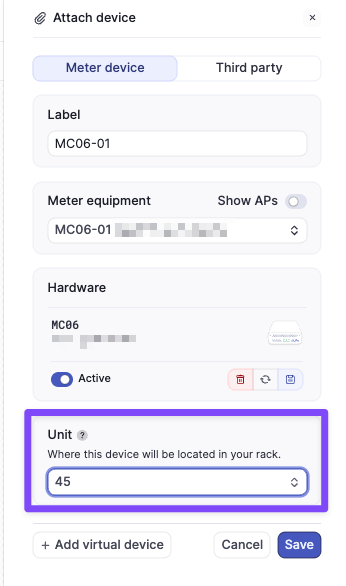

Fill out the rack unit position and then, click save.

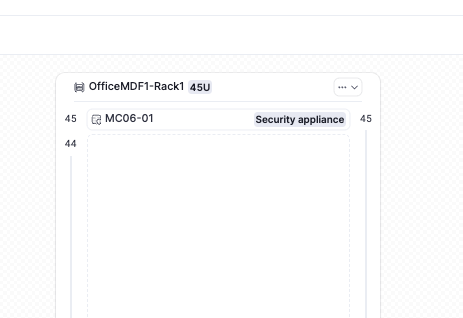

The device will now show in the rack with its label and device model.

If you have any questions about the Rack Elevations or need further assistance, feel free to contact Meter Support at support@meter.com or submit a ticket in the Meter Dashboard.
